Drill Bit Grinding Machine Drill Bit Grinder Drill Bit Sharpener Industrial Drill Bit Angle Grinding for ф3-ф13mm Drill Bits 13D

Parameters: Grinding Range: ф3-ф13 Point angle: 100°-135° Power: 110V, 60HZ Motor: 120W Speed: 4400rpm Grinding Wheel: CBN (For HSS) Package Size: 12.6*7.1*7.5inch(32*18*19cm) Weight: (19.4lb)8.8KG Features: 1. Grinding is accurate and rapid, easy operation with no skill to grind. 2. Economical price that greatly reduces the cost and improves the use effect. 3. With CBN grinding wheel, it can be equipped directly with an accurate angle and long service life. 4. The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life. 5.Built-in high precision collet clip,clamping stability, more accurate grinding. 6.Lightweight design,it's small enough to be carried with one hand.

• 【Easy to Operate】The drill bit grinder has a static point (the center) sizing, drilling can be done effectively with the material, the quality and accuracy of the work piece can control and extend the life of the drill bit. The diameter of suitable drill bits are ф3-ф13mm. Featured with simple operation, without skills can easily grind.

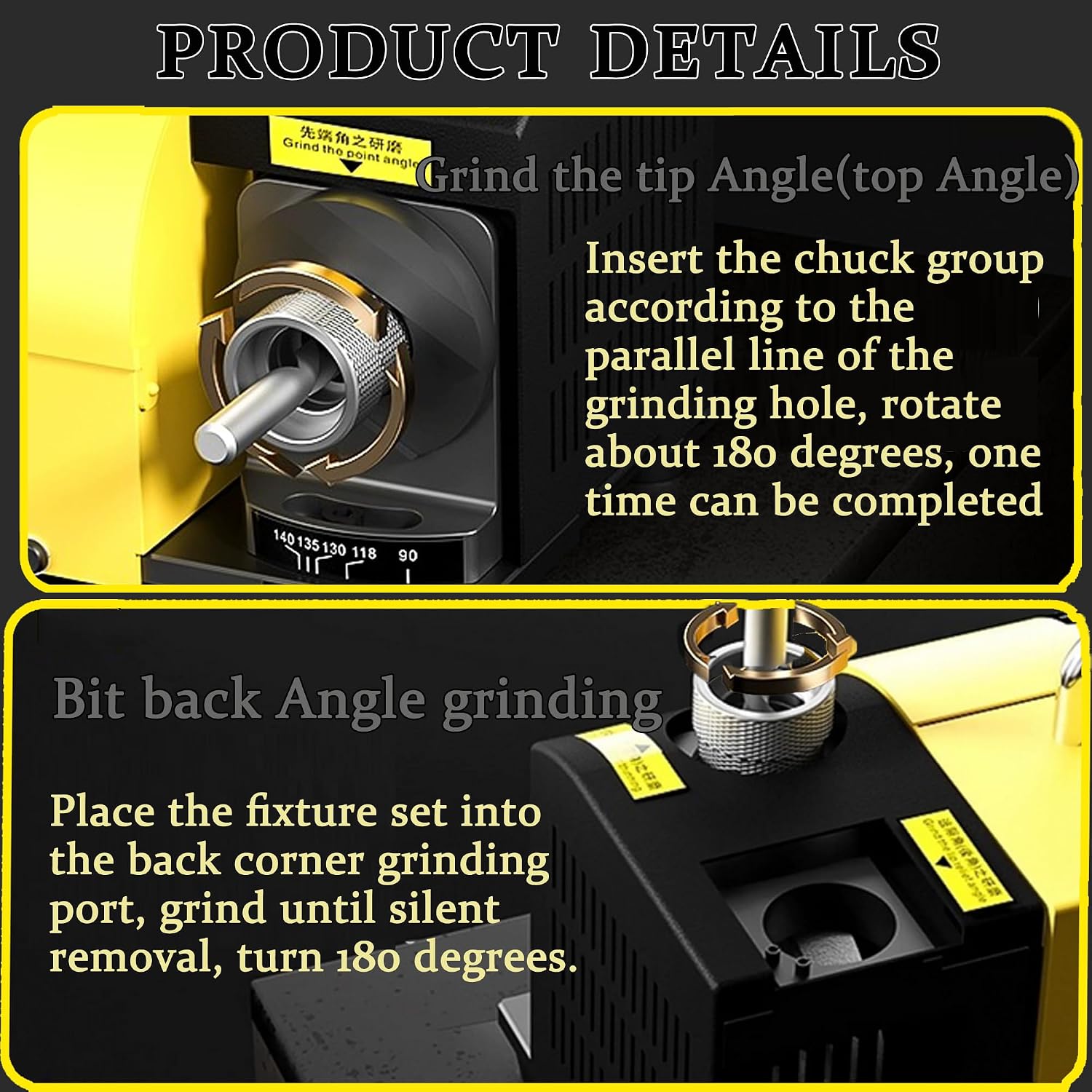

• 【with 11 built-in collets】The 11 collets clamping stably, more accurate grinding.It can sharpen the drill's point angle and lip relief angle, adjustable center chisel size, easy drilling and easy chip evacuation.
• 【Adjustable Angle Grinding】The grinding Angle can be adjusted freely from 100° to 135° according to the required bit tip Angle to meet your different needs.

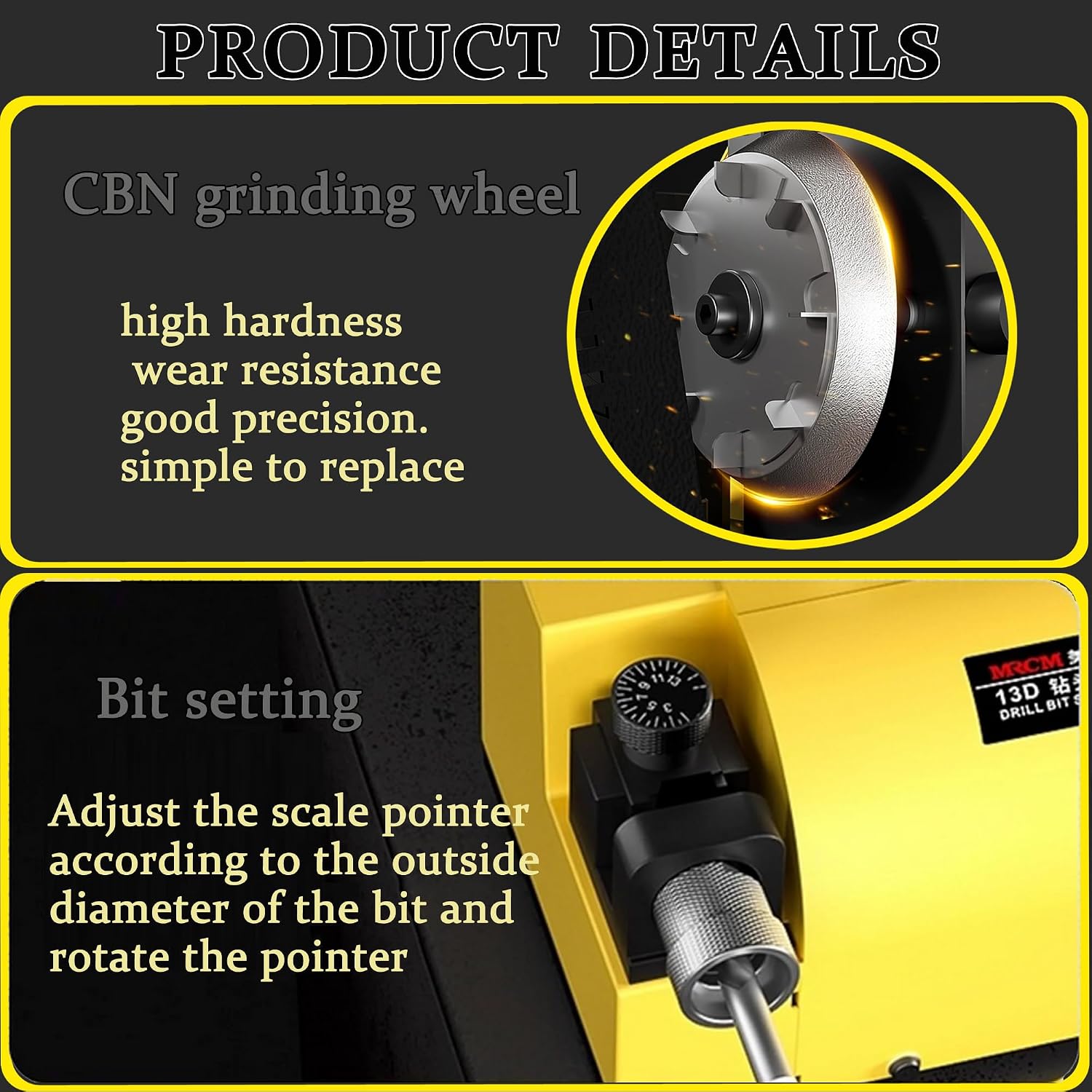

• 【High Quality Grinding Wheel】Using CBN (for HSS) grinding wheel, not only high hardness, wear resistance, but also good precision. The grinding wheel is simple to replace so that can be freely replaced.
• 【Pure Copper Motor】Adopt 120W powerful DC motor electronic control with frequency stabilization and strong power,which has high working efficiency.
