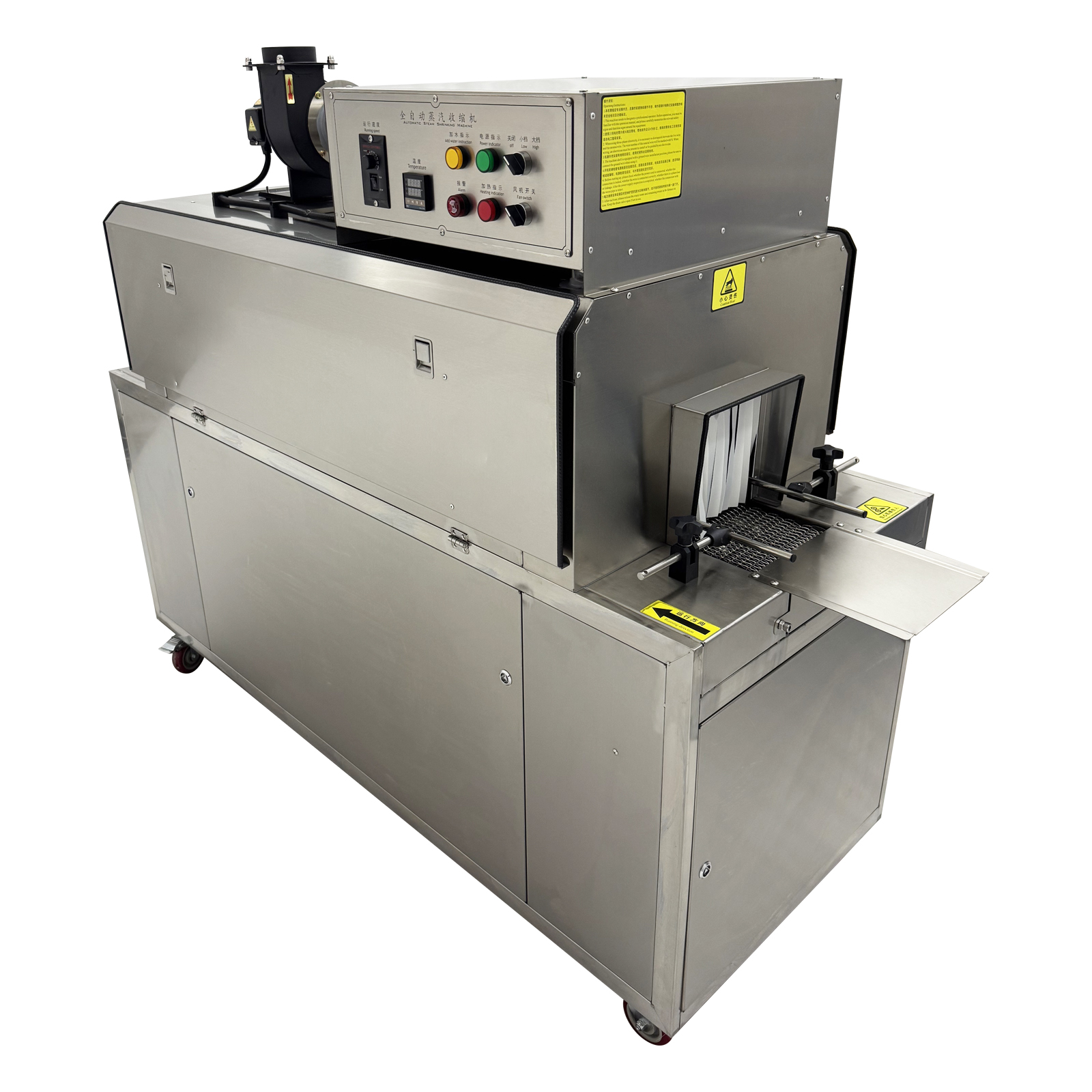

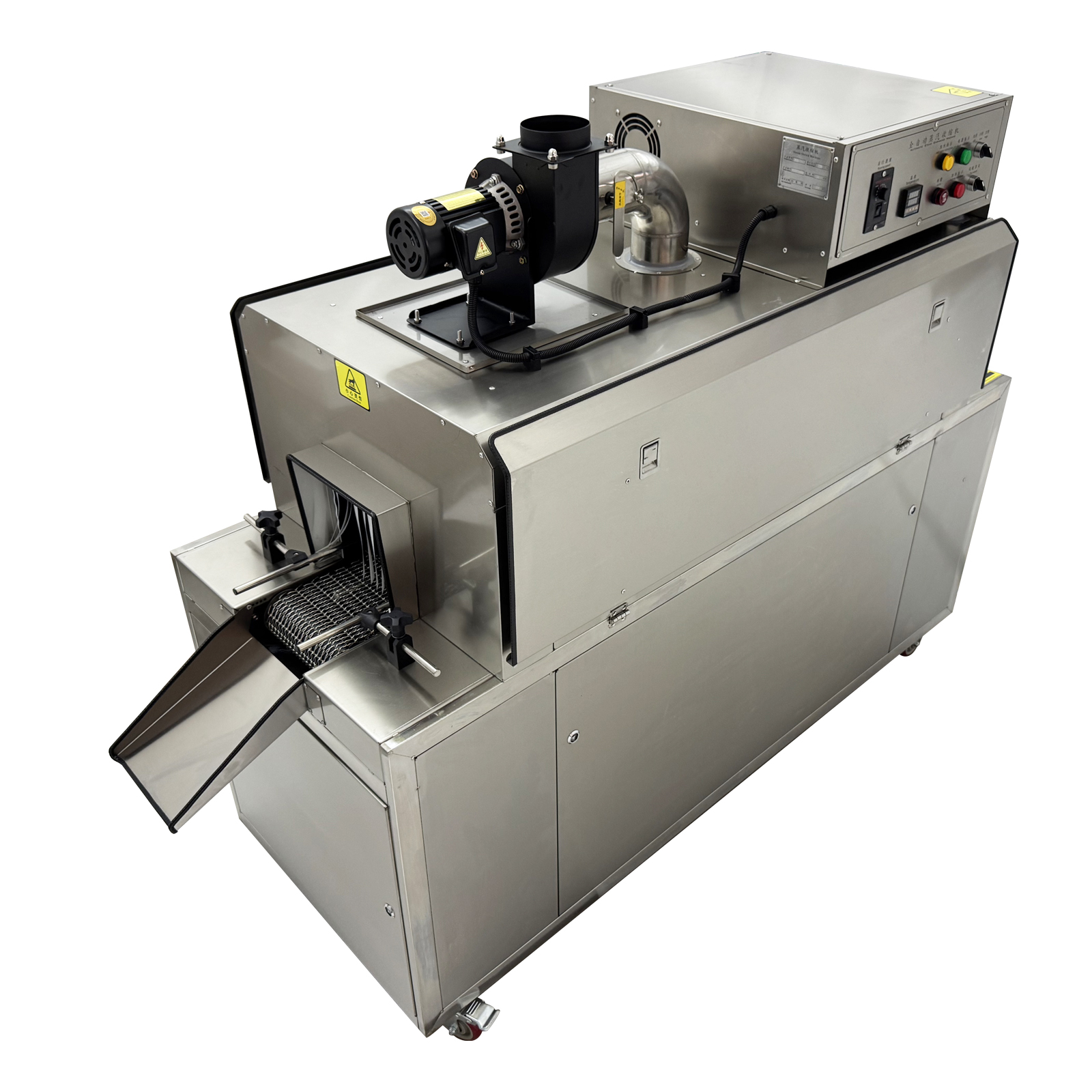

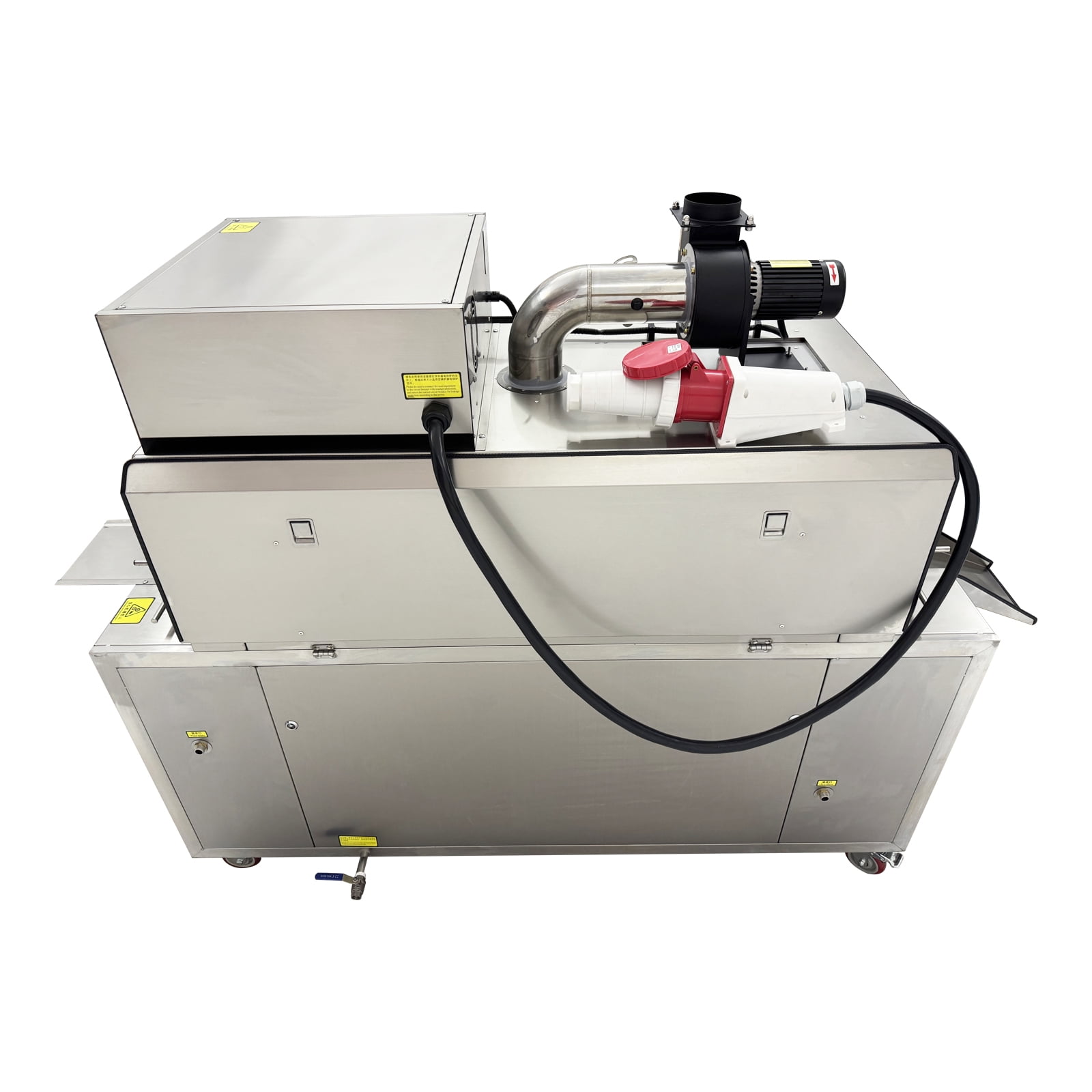

Automatic Steam Label Shrink Machine Bottle Label Heat Shrink Packaging Machine with Steam Generator 220V 3 Phase 0-100℃ for PVC PET PP PA

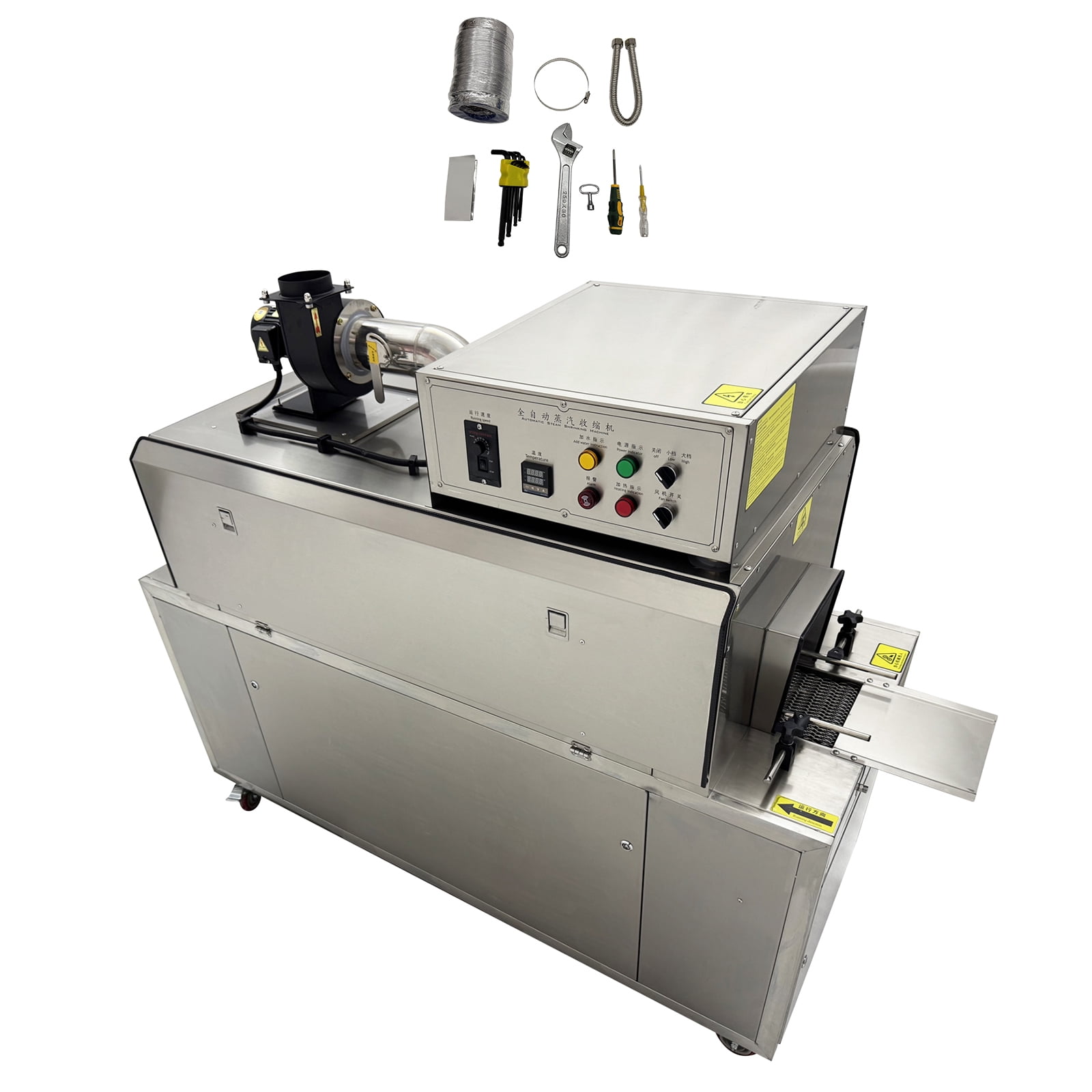

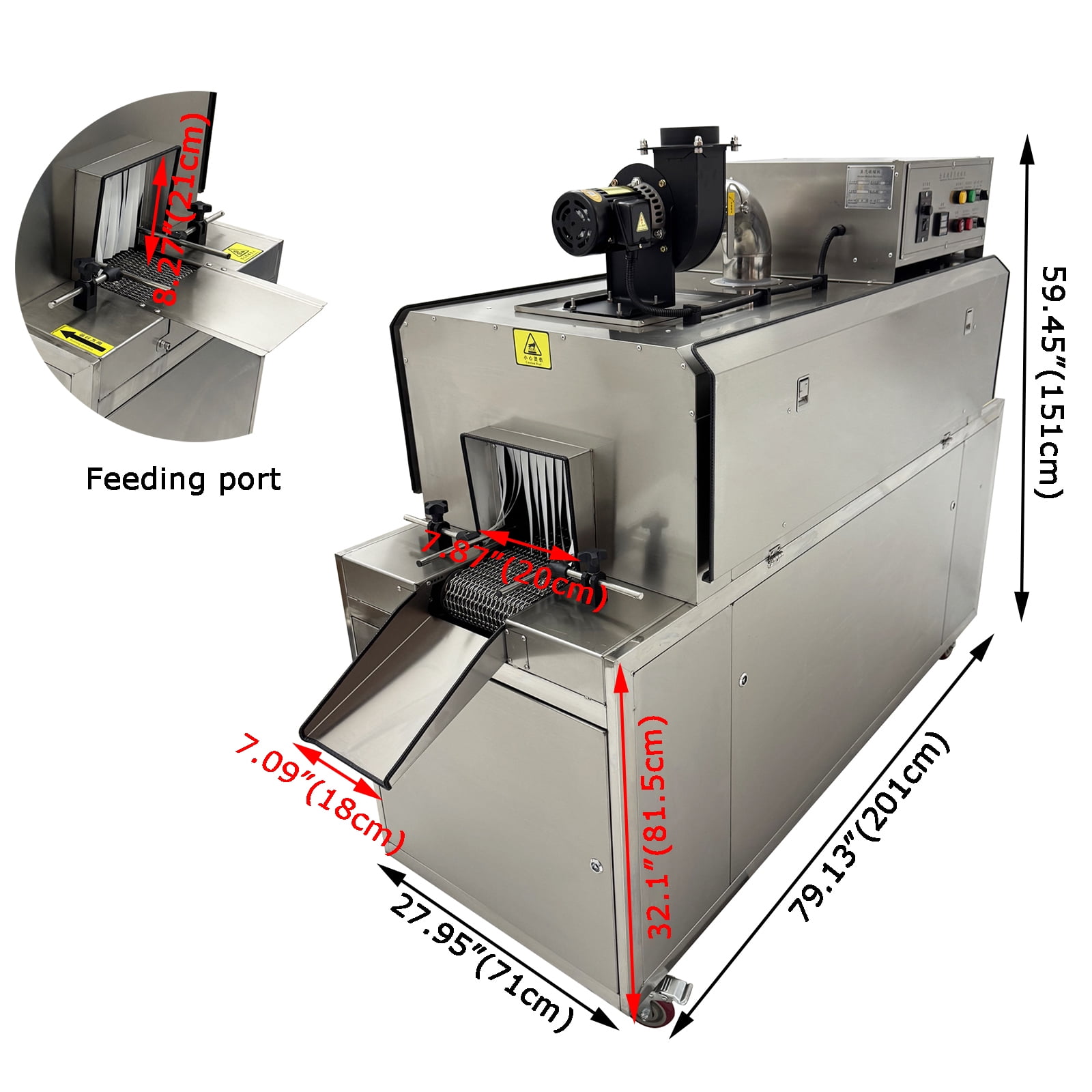

Product Overview <br>The steam label shrink machine‌ is a steam-heated film shrinking device primarily used for heat-shrinking sleeve labels on plastic bottles. It features automated operation, even steam heating, high stability, and high efficiency. Compared to electric heat shrink machines, it delivers superior shrinkage results without bottle deformation, ensuring smooth and wrinkle-free finishes. Ideal for breweries, beverage plants, pharmaceutical factories, and cosmetic manufacturers. <br> <br>Product Parameters <br>Voltage: AC220V <br>Phase number: 3 <br>Production capacity: 0-49ft/min (0-15m/min) <br>Temperature control: 0-100℃ <br>The form of movement: straight line <br>Maximum power: 24KW <br>Suitable packing material: PVC, PET, PP, PA <br>Machine material: SUS304 Stainless steel <br>Package size: 70.8"*31.9"*67.3" (180cm*81cm*171cm) <br>Net weight / Gross weight: 379.2lbs(172kg) / 540.1lbs(245kg) <br> <br>Note: Before use, carefully check whether all parts are properly installed and ensure all connections are tightly secured. Then proceed according to the operating procedure. <br> <br>Item Included (056705) <br>Steam Label Shrink Machine with Steam Generator *1 <br>Accessory Kit *1

• Compatible with common shrink film materials such as PVC, PET, PP, and PA, the adjustable spacing guardrail design is suitable for different bottle diameters and is widely used in industries such as beer, beverages and cosmetics.

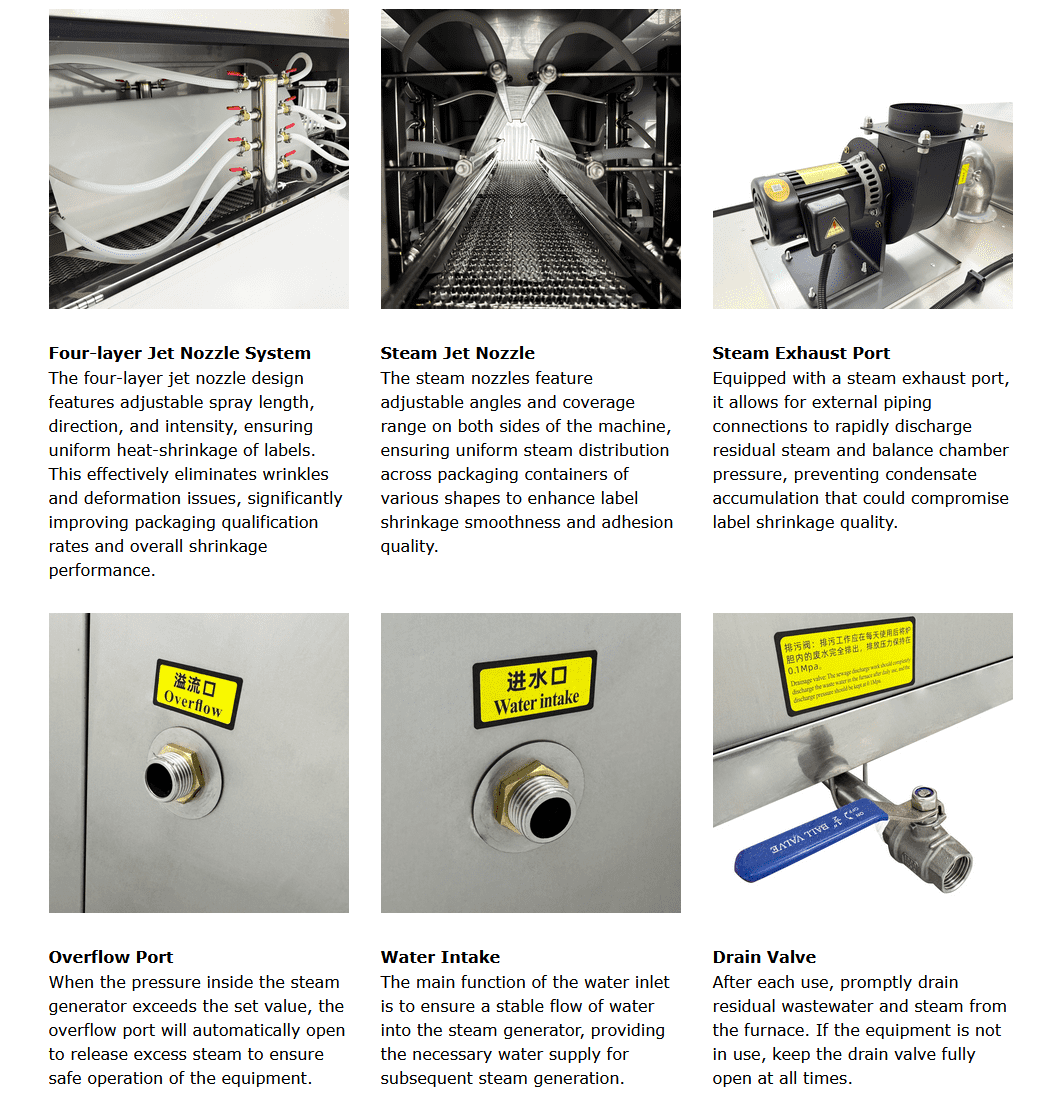

• Equipped with a steam exhaust port, it allows for external piping connections to rapidly discharge residual steam and balance chamber pressure, preventing condensate accumulation that could compromise label shrinkage quality.
• The four-layer jet nozzle design features adjustable spray length, direction, and intensity, ensuring uniform heat-shrinkage of labels.

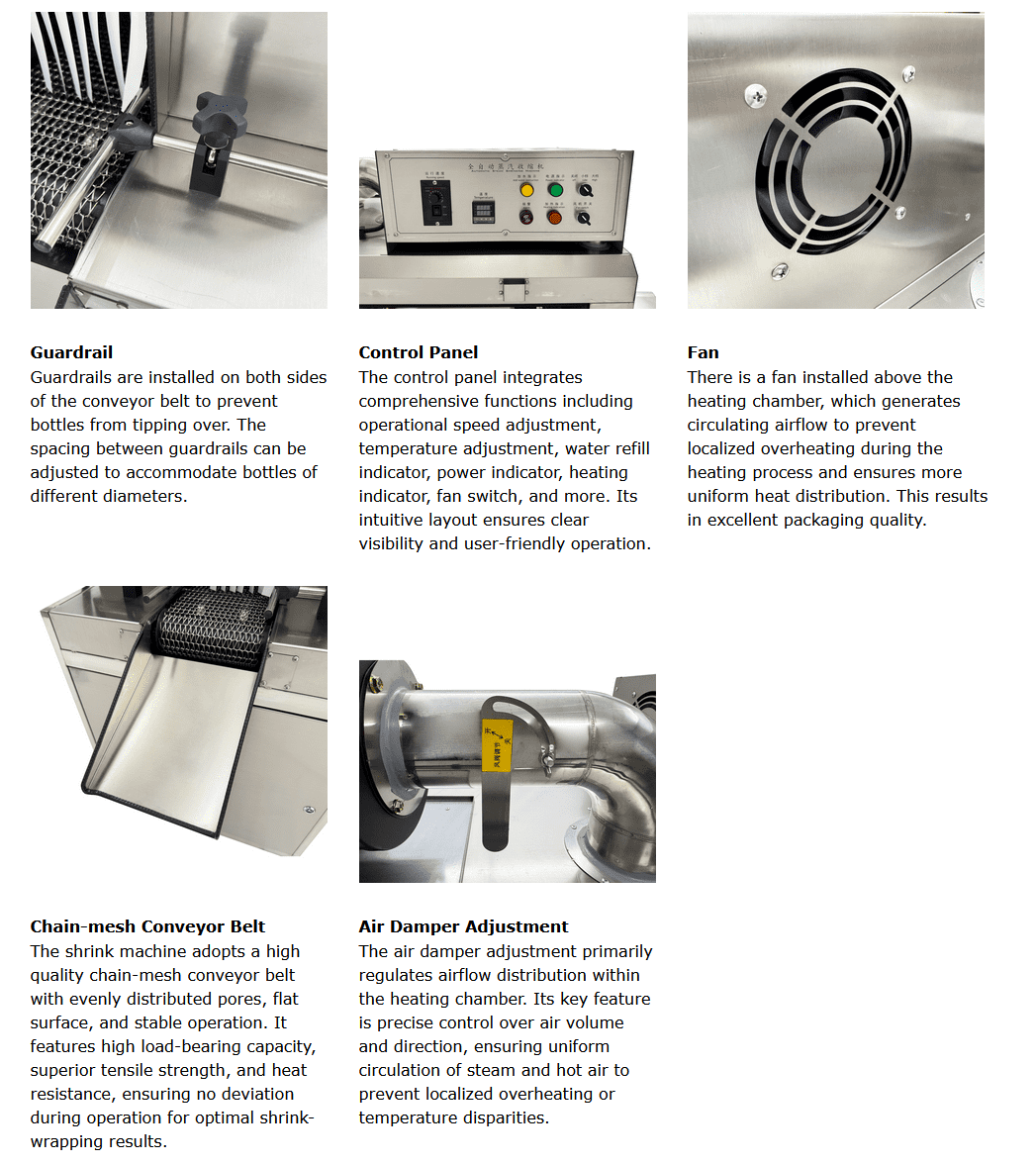

• There is a fan installed above the heating chamber, which generates circulating airflow to prevent localized overheating during the heating process and ensures more uniform heat distribution.
• The integrated control panel includes speed adjustment, temperature control and visual indicator lights.
• The conveyor belt is equipped with adjustable guardrails on both sides to prevent the bottles from toppling over and ensure the dual safety of the equipment and packaging containers during continuous production.
